Product Features
-
Low noise
Full load noise as low as 40dB
-
High efficiency
Silicon carbide design with up to 97% full load efficiency
-
Excellent EMI
Meet Class A standards for Europe and North America
-
High altitude
No derating below 4000 meters
Parameters
| Product Model | AB-U3T-A040B-E | |
| AC Input | Input Voltage | 260~480Vac，320~480Vac @full load |
| Max. Input current | 78A | |
Input Phase | 3-phase+protective earth | |
| THD | ≤5% @rated power | |
| Power factor | >0.99 @rated power | |
DC Output | Rated Output Power | 40kW (1000Vdc/40A) |
| Output voltage | 150~1000Vdc | |
| Constant Power Range | 300~1000Vdc | |
Max. Output current | 133.3A | |
| Efficiency | 97%@400Vac/800Vdc,@full load | |
| 97.2% Peak efficiency | ||
Structural Parameters | Typical Noise | 40dB @400Vac/400Vdc，@full load |
| Ingress Protection | IP65 | |
| Protection Method | Liquid Cooling | |
| Dimension | D*W*H:460mm*300mm*120mm | |
| Weight | 24kg | |
| Environmental Specifications | Environment temperature | -40~75°C |
| Liquid Temperature | -40~75°C,60~75C derating to half load linearly | |
| Cooling | Liquid Cooling | |
| Humidity | 0-95%RH, no condensation | |
| Altitude | ≤4000m | |
| Safety Standards/EMC | ||
| EMI Class A | ||

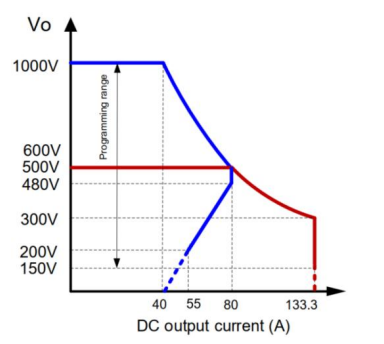

| Output Curve |   | |
Application scenario
supercharging station
