Product Features
-
Low noise
Full load noise as low as 55dB
-
High efficiency
Silicon carbide design with up to 97.6% full load efficiency
-
Excellent EMI
Meet Class B standards for Europe and North America
Parameters

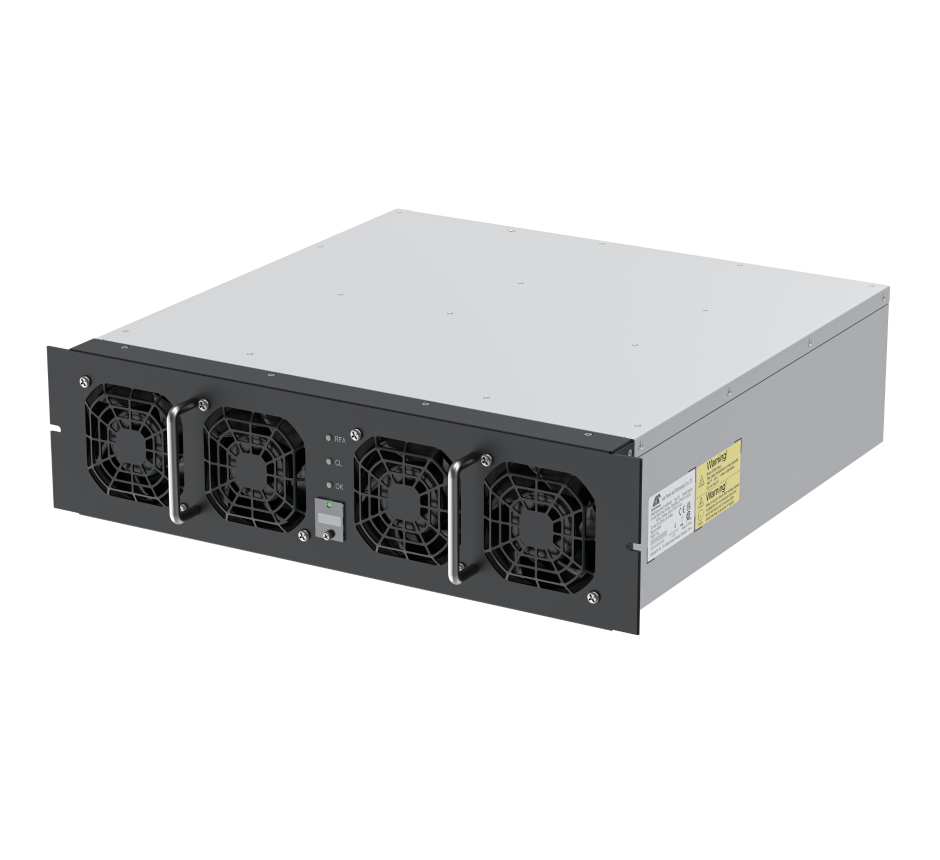

| Product Model | UAA-1K050B-SL | |
| AC Input | Input Voltage | 260~530Vac，320~530Vac @full load |
| Max. Input current | 95A | |
Input Phase | 3-phase+protective earth | |
| THD | ≤5% @rated power | |
| Power factor | >0.99 @rated power | |
DC Output | Rated Output Power | 50kW (1000Vdc/50A) |
| Output voltage | 150~1000Vdc | |
| Constant Power Range | 300~1000Vdc | |
Max. Output current | 166.6A | |
| Efficiency | 97%@400Vac/800Vdc,@full load | |
| 97.6%Peak efficiency | ||
Structural Parameters | Typical Noise | 55dB @400Vac/400Vdc，@full load |
| Ingress Protection | IP20 | |
| Protection Method | Full glue filling | |
| Dimension | D*W*H:390mm*385mm*110mm | |
| Weight | 20kg | |
| Environmental Specifications | Operation temperature | -40~75°C,55~75°C derating to 25kW linearly |
| Cooling | Forced Air Cooling | |
| Humidity | 0-95%RH, no condensation | |
| Altitude | ≤4000m | |
| Safety Standards/EMC | IEC61851-1，IEC61851-23,UL2202 | |
| EMI Class B | ||
| Output Curve |
| |
Application scenario
DC fast charging
